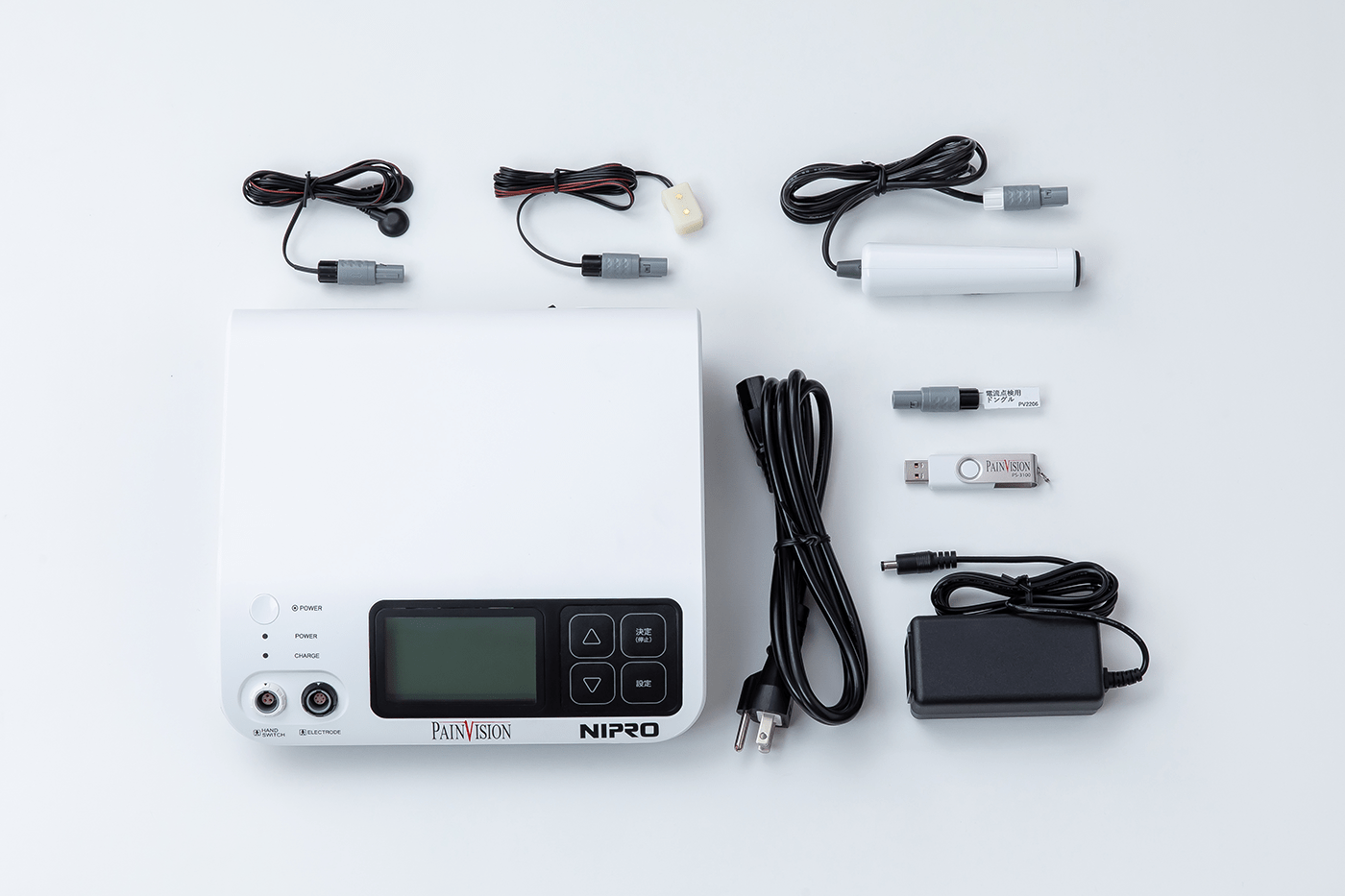

Overview
The Pain and Sensory Measurement System, PainVision PS-3100 can be used independently or connecting to a computer. When connecting PainVision PS-3100 to a computer, make sure your computer meets the operating environment.

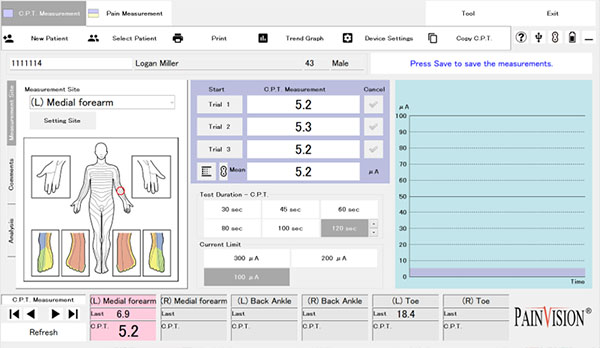

Current Perception Threshold
This mode evaluates the Minimum Perceived Current (Current Perception Threshold) by gradually increasing its stimulating current. The device can be set to generate the stimulating current after confirming that the patient is able to use the hand switch supplied with the kit. Before taking measurements, the stimulating current and stimulation time limits can be set via the Settings Menu. At the point the stimulating current is initially acknowledged, the hand switch button shall be pressed, ending the measurement and stimulating current generation. The point at which current is initially acknowledged represents the Minimum Perceived Current (Current Perception Threshold).

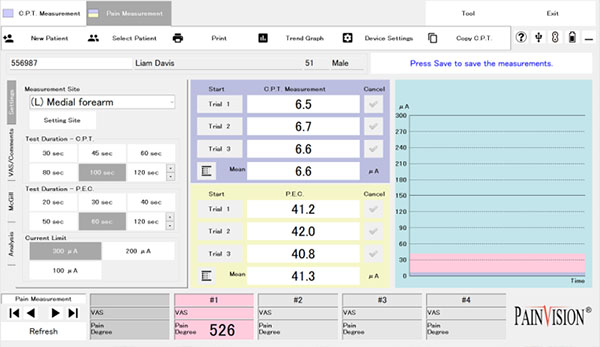

Pain Measurement
This mode is for measuring pain. After measuring the Current Perception Threshold, use the same procedure to measure the level of current that produces a sensation equivalent to pain. Generate the stimulating current after checking that the patient is able to use the hand switch supplied with the kit. Before taking measurements, the stimulating current and stimulation time limits can be set via the Settings Menu. At the point the stimulating current is acknowledged as being equivalent sensation to pain, the hand switch button is pressed, ending the measurement and stimulating current generation. (Pain Equivalent Current)
Based on the Current Perception Threshold, the Pain Equivalent Current is evaluated, and can be displayed as values of Pain Ratio or Pain Degree.
PS-2100 >
Disposable electrode

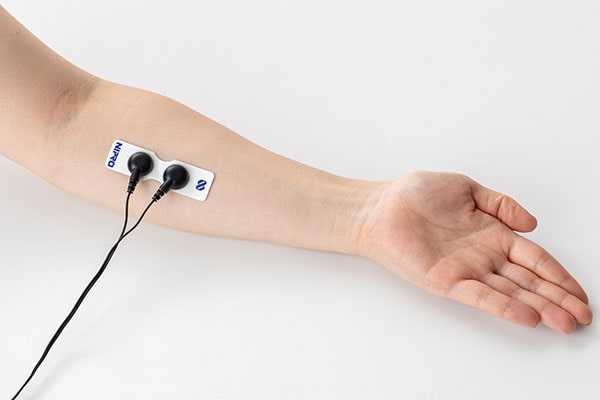

Disposable electrode EL-BAND (expendable electrode)
PainVision PS-3100 requires a specifically -designed disposable electrode to take measurements. The electrode supplied with the unit must be used to achieve accurate measurements.

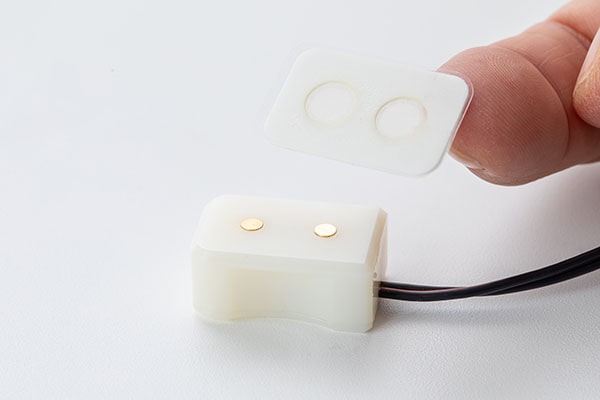

Disposable electrode EL-PATCH (expendable electrode)
Disposable electrode EL-PATCH is an electrode designed to measure current perception threshold in small places such as fingertips where EL-BAND cannot be applied.
Print Report
The perception/pain quantitatively analytical device, PainVision PS-3100 can be used independently or connected to a computer. When connecting PainVision PS-3100 to a computer, make sure your computer meets the operating environment.

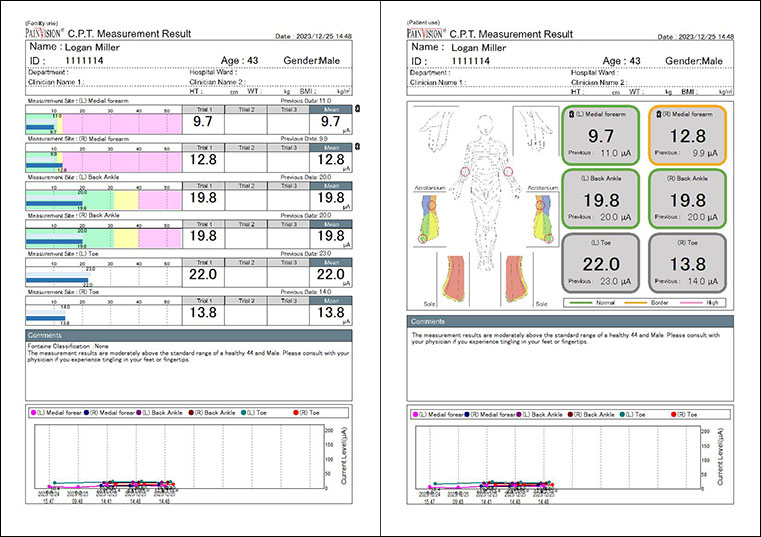

Results of current perception threshold measurement

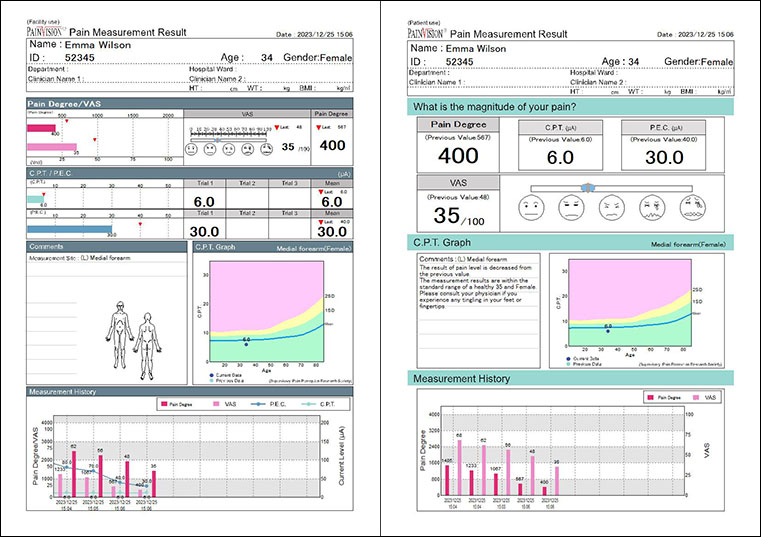

Pain measurement result
Specification
Specification
- Classification
- Class II medical device
- Protection form
- On charging: Class I Device, On measuring: Internal power supply device
- Dimensions
- W245×D230×H70mm
- Weight
- 1.5kg
- Power supply
- Input: 100–240 V 50/60 Hz,
Output: DC 12 V 40–60 VA (Dedicated AC Adapter) - External connection terminal
- USB Type C
- Consumables
- EL-BAND, EL-PATCH
- Charging time
- Approx. 4 hours
- Out of battery
- Approx. 8 hours
Application environment
- PC
- Computer: a computer that can run Windows
- CPU
- Recommended CPUs for Windows 10 and Windows 11
(The required clock varies depending on the capacity of the measurement data) - RAM
- Recommended RAM amount for each OS
- HDD
- HDD: Recommend more than 30 MB for the program only
(The required free space on the HDD
varies depending on the capacity of the measurement data) - Display
- 1,113 × 645 pixels or more
- Interface
- USB port only for the PS-3100 connection
- Supported OS
- Windows 10
Windows 11
