Overview

MS-3000 offers you at valuable price and is very user-friendly and intuitively operable device even at a limited space like examination sites.
ArterioVision MS-3000 has succeeded all the technology that CardioVision MS-2000 has cultivated over 20 years.
ArterioVision MS-3000 can measure simultaneously ASI which is patented technology with conventional technology ABI and PWV within only 5 minutes, and it can screen CAD risk together with PAD diagnosis.
All measurement data is stored on the tablet PC and can be recalled at any time.
Measurement data can be printed with a tablet PC connected printer via Wi-Fi.

Print Report

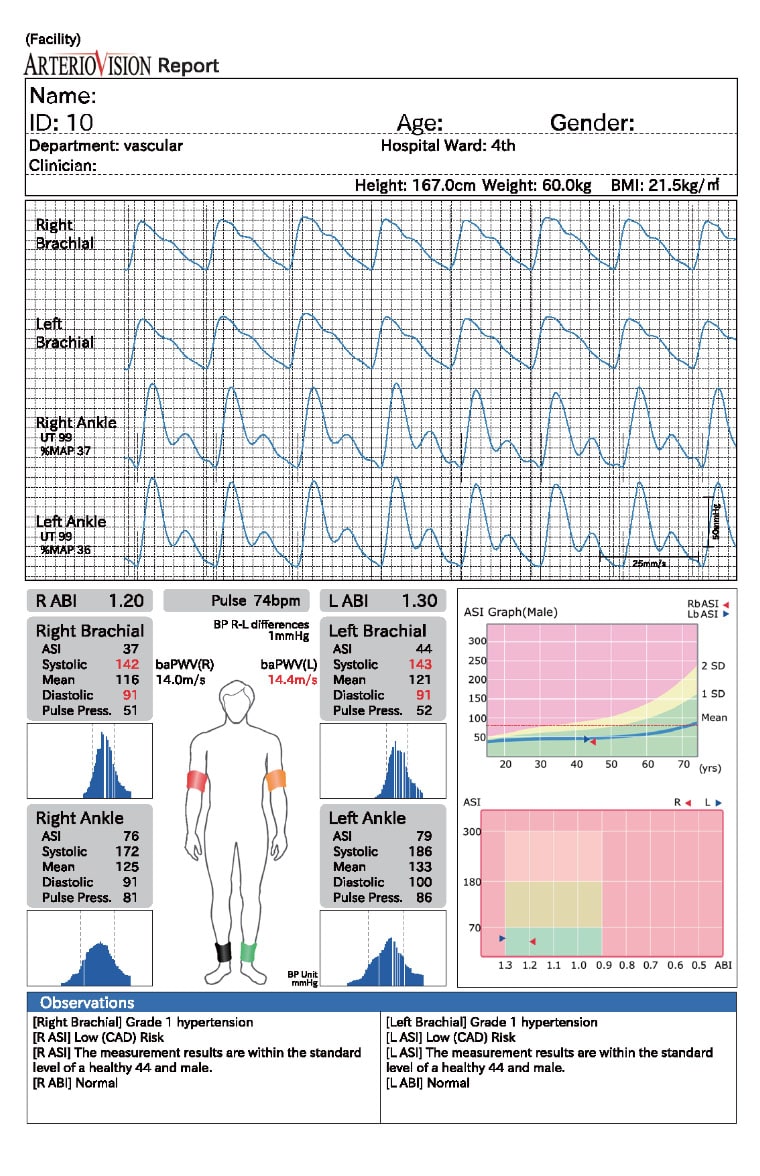

For Facility

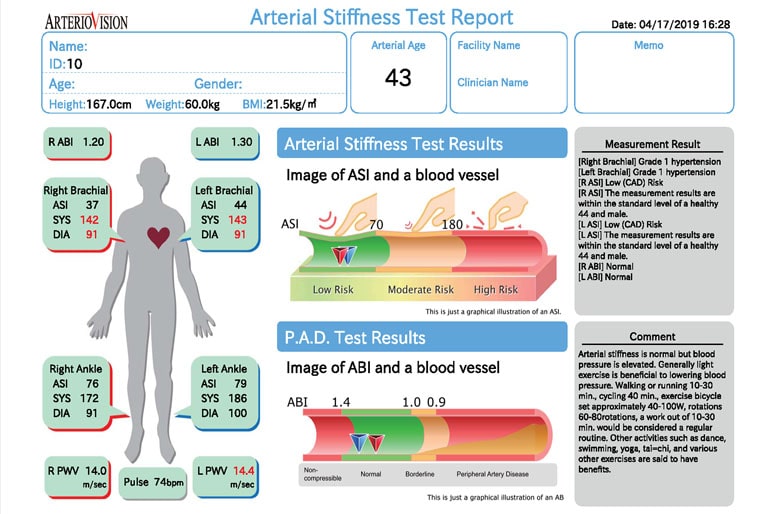

For Patient

Specification

ARTERIOVISION operates on a dedicated Tablet PC.

Primary Specifications

Classification
Class II, Type BF
Dimensions
(Width) 18.0 (Depth) 18.0 (Height) 7.0cm
Weight
Main Unit: Approx. 1.0kg
Power
AC100-240V 50/60Hz, 0.6A
Range Measurement
Pressure: 40 ‒ 250mmHg
Pulse: 40 ‒ 200bpm
Accuracy
Pressure: +3mmHg
Pulse: +5%
BP Measurement Accuracy
IEC80601-2-30:2009/Amd1:2013
Packaged items

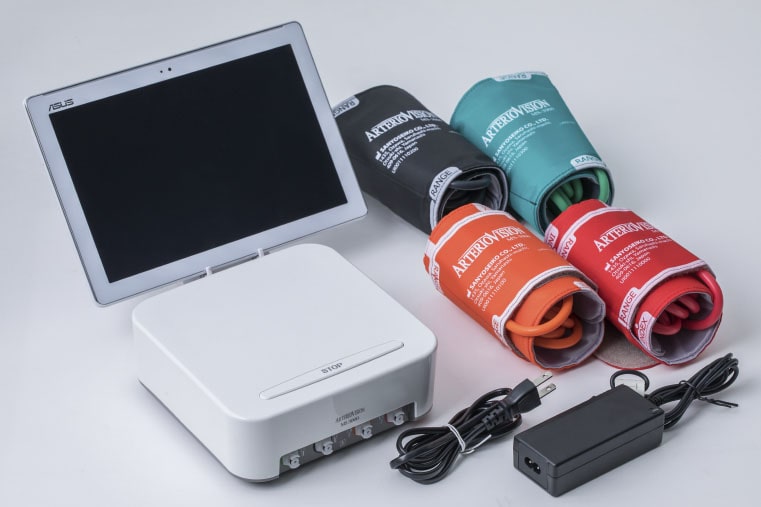

Main Unit, AC adaptor, AC Cable, Limb Cuff (standard sizes) 1set, Extension Hose 1set

* This Device operates normally in the English environment.

Accessory
