Overview
MS-3000 offers you at valuable price and is very user-friendly and intuitively operable device even at a limited space like examination sites.
ArterioVision MS-3000 has succeeded all the technology that CardioVision MS-2000 has cultivated over 20 years.
ArterioVision MS-3000 can measure simultaneously ASI which is patented technology with conventional technology ABI and PWV within only 5 minutes, and it can screen CAD risk together with PAD diagnosis.
All measurement data is stored on the tablet PC and can be recalled at any time.
Measurement data can be printed with a tablet PC connected printer via Wi-Fi.
MS-2000 >

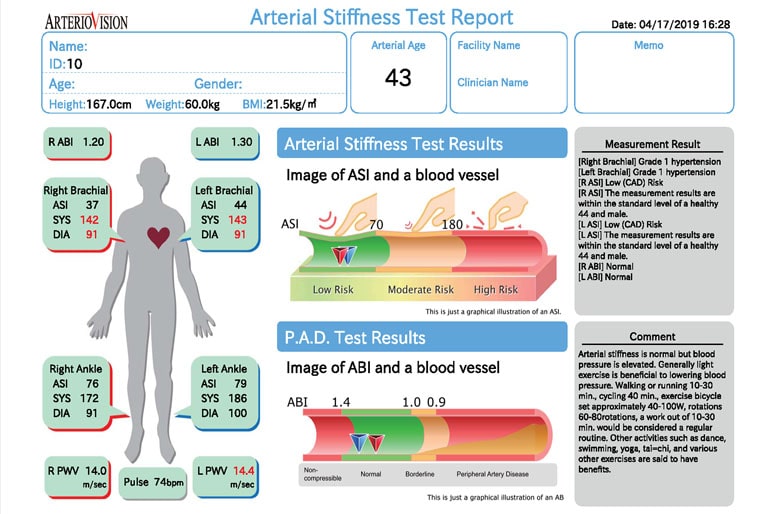

Print Report

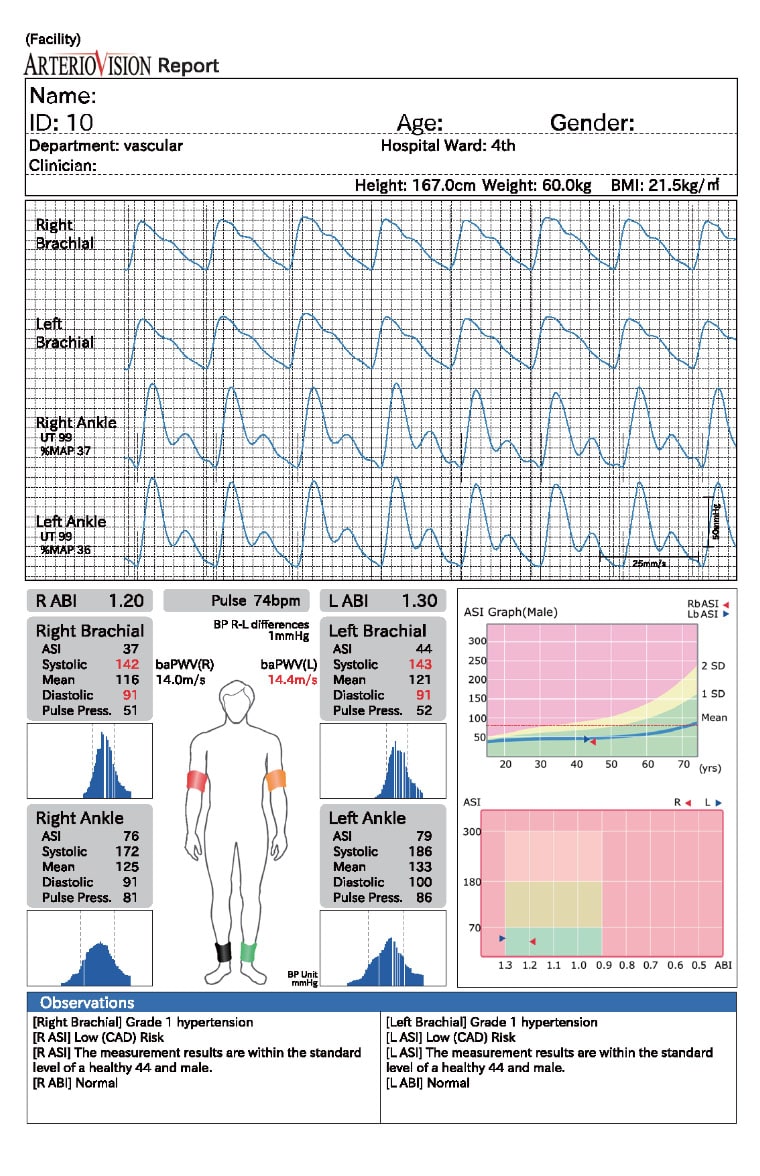

For Facility
For Patient
Specification
ARTERIOVISION operates on a dedicated Tablet PC.
Primary Specifications
- Classification
- Class II, Type BF
- Dimensions
- (Width) 18.0 (Depth) 18.0 (Height) 7.0cm
- Weight
- Main Unit: Approx. 1.0kg
- Power
- AC100-240V 50/60Hz, 0.6A
- Range Measurement
- Pressure: 40 ‒ 250mmHg
Pulse: 40 ‒ 200bpm - Accuracy
- Pressure: +3mmHg
Pulse: +5% - BP Measurement Accuracy
- IEC80601-2-30:2009/Amd1:2013

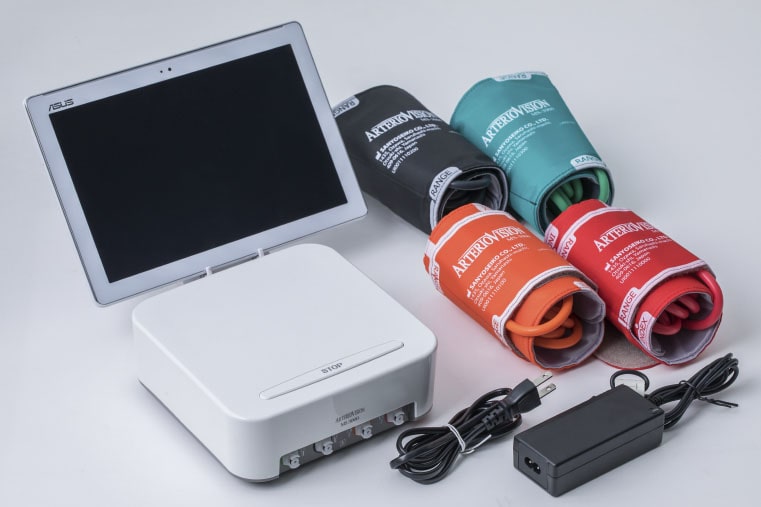

- Packaged items
- Main Unit, AC adaptor, AC Cable, Limb Cuff (standard sizes) 1set, Extension Hose 1set
* This Device operates normally in the English environment.
Accessory
